Description
Product Description
STMA bale clamp fork lift 3 ton 3000kg 3t diesel forklift truck bale clamp with high quality
forklift bale clamp
|
SPECIFICATIONS FOR 3 TON BALE CLAMP FORKLIFT
|
|
Model
|
FD30
|
|||
|
1
|
Power Type
|
Diesel
|
||
|
2
|
Rated Capacity
|
kg
|
3000
|
|
|
3
|
Load Centre
|
mm
|
500
|
|
|
4
|
Lift Height
|
mm
|
3000
|
|
|
5
|
Fork Size (L×W×T )
|
mm
|
1070×125×45
|
|
|
6
|
Mast Tilt Angle (F/R)
|
Deg
|
6°/12°
|
|
|
7
|
Front Overhang (Wheel center to fork face)
|
mm
|
475
|
|
|
8
|
Ground Clearance(Bottom of mast)
|
mm
|
120
|
|
|
9
|
Turning Radius (outside)
|
mm
|
2400
|
|
|
10
|
Min. Intersecting aisle
|
mm
|
2110
|
|
|
11
|
Max.Gradeability (No load/Full load)
|
%
|
19
|
|
|
12
|
Wheelbase
|
mm
|
1700
|
|
|
13
|
Service weight
|
kg
|
4390
|
|
|
14
|
Battery (Voltage/Capacity)
|
V/Ah
|
12/90
|
|
|
15
|
Overall Dimension
|
Length to face of fork(Without fork)
|
mm
|
2670
|
|
16
|
Speed
|
Overall Width
|
mm
|
1225
|
|
17
|
Mast Lowered Height
|
mm
|
2065
|
|
|
18
|
Mast Extended Height(With backrest)
|
mm
|
4150
|
|
|
19
|
Overhead Guard Height
|
mm
|
2090
|
|
|
20
|
Travel (No load)
|
km/h
|
19
|
|
|
21
|
Lifting(Full load)
|
mm/s
|
440
|
|
|
22
|
Tire
|
Front
|
mm
|
28×9-15-12PR
|
|
23
|
Rear
|
mm
|
6.50-10-10PR
|
|
|
24
|

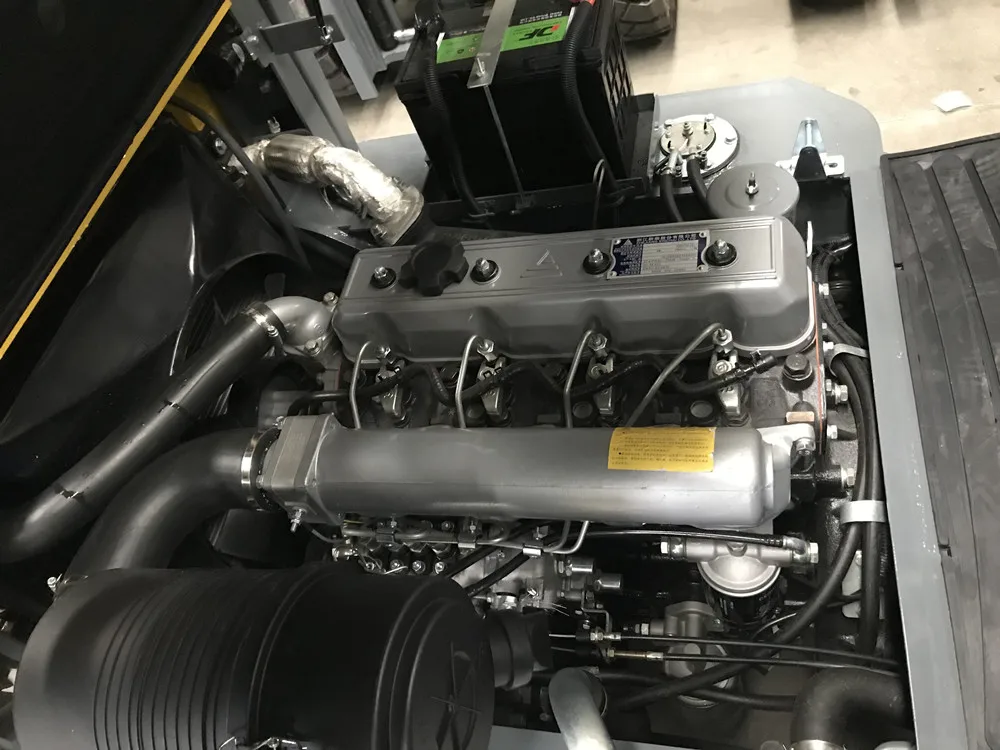

Engine
|
Model
|
C240 PKJ
|
|
|
25
|
Manufacture
|
ISUZU
|
||
|
26
|
Rated output/r.p.m.
|
kw
|
35.4/2500
|
|
|
27
|
Rated torque/r.p.m.
|
N·m
|
139/1800
|
|
|
28
|
No.of Cylinder
|
4
|
||
|
29
|
Bore×Stroke
|
mm
|
86×102
|
|
|
30
|
Displacement
|
cc
|
2369
|
|
|
31
|
Fuel Tank Capacity
|
L
|
70
|
|
|
32
|
Transmission
|
Type
|
Powershift
|
|
|
33
|
Stage FWD/RVS
|
43101
|
||
|
34
|
Operating Pressure for Attachment
|
Mpa
|
17.5
|
Details
Overview/Buy STMA bale clamp fork lift 3 ton 3000kg 3t diesel forklift truck bale clamp with high quality- ONLINE
Quick Details
- Applicable Industries:
-
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Home Use, Retail, Construction works , Energy & Mining, Advertising Company, Station and port
- Condition:
-
New
- Brand Name:
- Power Souce:
-
Diesel Engine
- Min. Lifting Height:
-
0m
- Fork Length:
-
1070mm
- Fork Width:
-
125mm
- Overall Dimensions:
-
2705*1225*2075
- Certification:
-
CE/ISO9001/EPA
- Warranty:
-
2 years
- After-sales Service Provided:
-
Free spare parts, Overseas third-party support available
- Machinery Test Report:
-
Provided
- Video outgoing-inspection:
-
Provided
- Marketing Type:
-
New Product 2020
- Warranty of core components:
-
1 Year
- Core Components:
-
Pressure vessel, Motor, OTHER, Bearing, Gear, Pump, Gearbox, Engine, PLC
- Brand:
-
STMA
- Weight:
-
4380kg
- Product Name:
-
forklift bale clamp
- Item:
-
bale clamp forklift
- Engine model:
-
XINCHAI 490BPG Diesel Engine
- Load Center:
-
500mm/Diesel Forklift
- Color:
-
Customer Demanded
- Tire:
-
Pneumatic
- Transmission:
-
Automatic Electric Hydraulic Transmission
Forklift attachments
